How a Whole House Humidifier Works with Your Furnace

Why Knowing How a Whole House Humidifier Works with Your Furnace Matters for Your Home Comfort

How a whole house humidifier works with your furnace comes down to a simple idea: your furnace heats the air, and the humidifier adds moisture to it before that air travels through your home's ductwork. Here's a quick breakdown:

1. Humidity drops in winter — cold outdoor air holds very little moisture, and heating it makes indoor air even drier.
2. The humidifier connects to your water line — it feeds water onto an evaporator pad or into a steam canister.
3. Your furnace blower does the work — warm air passes through or over the water source, picks up moisture, and carries it throughout your home.
4. A humidistat controls everything — it monitors indoor humidity and switches the humidifier on or off to hold your target level.

When your home's air gets too dry, you feel it fast — cracked lips, dry skin, static shocks, and even damage to wood floors and furniture. In fact, an average household generates around 25 pounds of moisture every day just from cooking, showering, and breathing, yet in winter, indoor humidity can still plunge below 20% without a proper system in place.

A whole-house humidifier solves that problem at the source, working quietly alongside your existing heating system to keep every room comfortable — not just one corner of a bedroom.

What is a Whole-House Humidifier vs. Portable Units?

When homeowners in East Alabama start feeling the effects of dry winter air, they often face a choice: do they scatter small, portable humidifiers across their bedrooms, or do they invest in a whole-house system? Understanding the differences in coverage, convenience, and performance is key to choosing the right option.

Coverage Capacity and Daily Output

Portable humidifiers are designed to humidify a single room or a small, enclosed area. They generally hold one to several gallons of water and require manual refills once or twice a day. If you live in a multi-room home, you would need to buy, plug in, and maintain up to ten portable units to match the moisture output of a single whole-house system.

An evaporative whole-house humidifier can output up to 18 gallons of moisture per day, and high-capacity steam models can deliver up to 34 gallons daily. This is more than enough to evenly distribute healthy moisture across homes up to 3,000 square feet or larger.

Direct Plumbing vs. Manual Refills

One of the biggest pain points of portable units is the constant chore of carrying heavy water tanks to the sink, spilling water on carpet, and scrubbing out slimy residue. A whole-house humidifier is permanently connected to your home’s main water supply. It draws water automatically whenever the system calls for humidity. There are no tanks to carry, no puddles on the floor, and no daily chores.

Maintenance, Sanitation, and White Dust

Because portable units rely on standing water, they are notorious breeding grounds for mold, mildew, and bacteria if not cleaned every few days. Additionally, if you fill a portable unit with tap water, the ultrasonic or heating elements vaporize the minerals in the water, leaving a fine layer of white mineral dust across your furniture.

Whole-house units eliminate these issues. Flow-through models let excess water drain away immediately rather than allowing it to sit in a stagnant reservoir, while steam models boil water to kill off airborne pathogens. To explore your options for integrated indoor air quality upgrades, check out our guide on Humidifiers and Dehumidifiers.

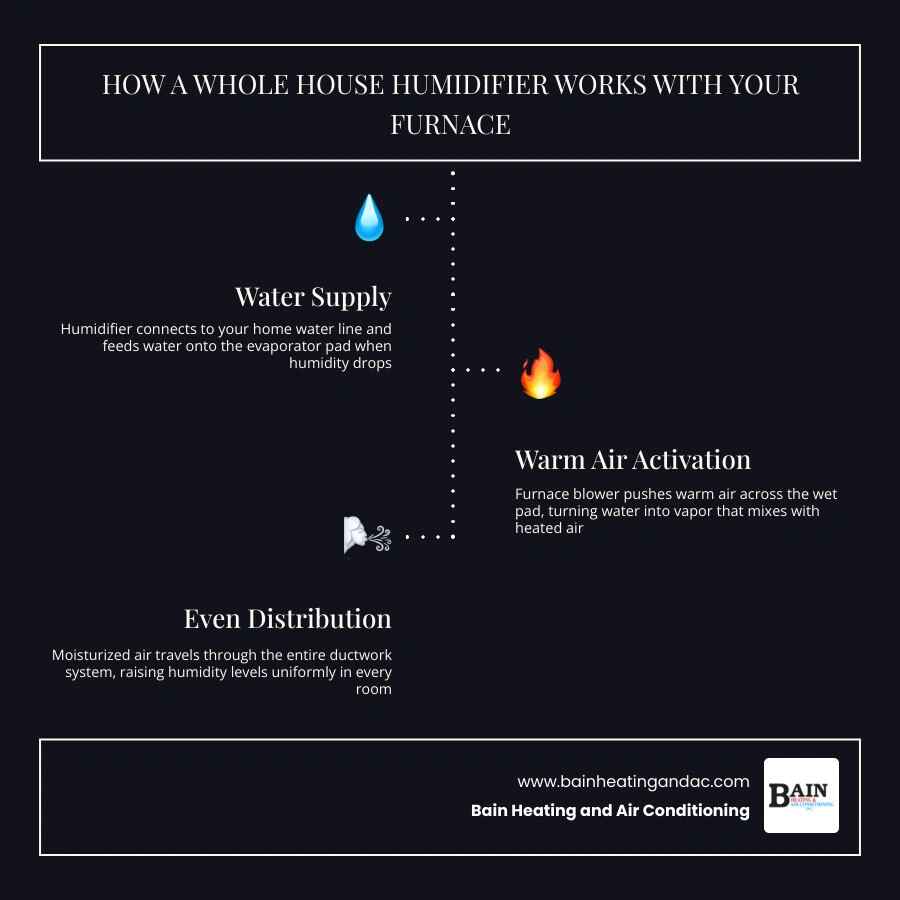

How a Whole House Humidifier Works with Your Furnace

To understand how a whole house humidifier works with your furnace, it helps to think of your HVAC system as a closed loop. Your furnace pulls cold air from your rooms, heats it up, and pushes it back out through your supply vents. A whole-house humidifier piggybacks on this natural air circulation process.

The system is installed directly onto your home's central HVAC ductwork, typically on either the supply plenum (the ductwork that distributes heated air) or the return plenum (the ductwork that brings cool air back to the furnace). By positioning the unit here, every cubic foot of air circulated by your Furnaces can be treated before it reaches your living spaces.

Humidistat Control and the Solenoid Valve

The brain of the operation is the humidistat. Much like a thermostat monitors temperature, the humidistat monitors the relative humidity (RH) of your indoor air. It can be mounted on your living room wall next to your thermostat or installed directly into the return air duct.

When the humidistat detects that the indoor humidity has dropped below your desired setpoint (for example, 35%), it sends a low-voltage electrical signal to the humidifier's solenoid valve. The solenoid valve is an electronically controlled water gate. Upon receiving the signal, the valve opens, allowing water from your home’s plumbing line to flow into the humidifier.

The Evaporation Process and Air Distribution

Once the solenoid valve opens, water trickles down a distribution tray and saturates an evaporator pad (also known as a water panel). This pad is typically made of a porous, coated aluminum mesh designed to hold a large volume of water while allowing air to pass through easily.

As the furnace blower motor runs, it forces warm, dry air through the saturated evaporator pad. The heat from the furnace speeds up the natural process of evaporation, turning the liquid water on the pad into an invisible, clean water vapor. This newly humidified air is then pushed through the rest of your home’s ductwork, raising the comfort level in every single room simultaneously.

The Three Main Types of Furnace Humidifiers

Not all whole-house humidifiers add moisture to the air in the exact same way. Depending on your home's size, your existing HVAC configuration, and your comfort goals, one of three primary technologies will be the best fit.

Bypass Systems: How a Whole House Humidifier Works with Your Furnace Using Pressure

Bypass humidifiers are the most common and cost-effective ducted humidifiers on the market. They do not have their own built-in fans. Instead, they rely on a dedicated bypass duct that connects the warm air supply plenum to the cold air return plenum.

Because of the pressure differential created by the furnace blower, a portion of the heated air is diverted through the bypass duct, passed through the water-saturated evaporator pad, and fed back into the return duct to be mixed with the rest of the air stream. If you are looking for a simple, reliable, and energy-efficient solution, a bypass model is a fantastic option. Homeowners can learn more about local installations by visiting our page on Whole Home Humidifiers Oxford AL.

Fan-Powered Systems: Active Airflow Integration

Fan-powered humidifiers operate similarly to bypass models, but with one key upgrade: they feature an integrated fan. This internal fan pulls warm air directly from the supply plenum, forces it through the water panel, and pushes it back into the airstream.

Because they generate their own airflow, they do not require a bypass duct, making them ideal for tight utility closets where space around the ductwork is limited. They also consume less space and can deliver more moisture daily. For residents in the northern part of our service area, you can read more about local options on our Whole Home Humidifiers Jacksonville AL page.

Steam Systems: How a Whole House Humidifier Works with Your Furnace Independently

Steam humidifiers represent the gold standard of indoor moisture control. Rather than relying on evaporation from a damp pad, steam systems contain an electrode canister that heats water to a boil, creating pure, hygienic steam. This steam is then injected directly into your supply ductwork via a dispersion tube.

Steam systems can operate independently of your furnace's heating cycle; if your home needs moisture but not heat, the steam unit can activate your furnace's blower fan on its own to distribute humidity. For those in Alexandria and surrounding areas, explore our dedicated services at Whole Home Humidifiers Anniston AL.

Key Components of a Furnace Humidification System

To keep your whole-house humidifier running smoothly, it helps to understand the individual parts that make up the system:

• Humidistat / Control Board: The thermostat-like device that measures relative humidity and commands the system to turn on or off.
• Water Tap and Saddle Valve: The connection point where the humidifier taps into your home’s cold water line (or sometimes hot water line for increased evaporative efficiency).
• Solenoid Valve: An electromagnetic valve that opens and closes to control the flow of water to the unit.
• Water Distribution Tray: A tray at the top of the humidifier that evenly distributes trickling water across the width of the evaporator pad.
• Evaporator Pad (Water Panel): The replaceable mesh pad where the water-to-air evaporation actually takes place.
• Drain Line and Drain Pan: Flow-through systems use fresh water to prevent mineral buildup. Any water that doesn't evaporate trickles into a drain pan and is carried away safely through a dedicated PVC or vinyl drain line.
• Damper Control: Found on bypass models, this manual or motorized valve allows you to close off the bypass duct during the summer when you are running your air conditioning, preventing cold air from cycling unnecessarily.

Managing Your Home's Humidity: Settings and Benefits

Maintaining the right balance of moisture in your home is about more than just comfort; it is a core recommendation of the EPA for healthy indoor air quality.

• Protects Wood and Furnishings: Dry air acts like a sponge, drawing moisture out of wood floors, cabinetry, musical instruments, and drywall, which can cause cracking, warping, and shrinking.
• Relieves Respiratory Symptoms: Dry nasal passages and throats are more susceptible to winter viruses, allergies, and sinus infections. Proper humidity keeps these membranes moist and functioning.
• Reduces Static Electricity: Keeping your indoor air at a healthy humidity level stops static electricity from building up, protecting sensitive electronics and saving you from painful static shocks.
• Improves Energy Efficiency: Moist air holds heat better than dry air. Most people feel warmer in a room at 75°F with a relative humidity between 50% and 55% than in a room at the same temperature with very dry air. This allows you to lower your thermostat setpoint slightly without sacrificing comfort, saving money on your heating bills.

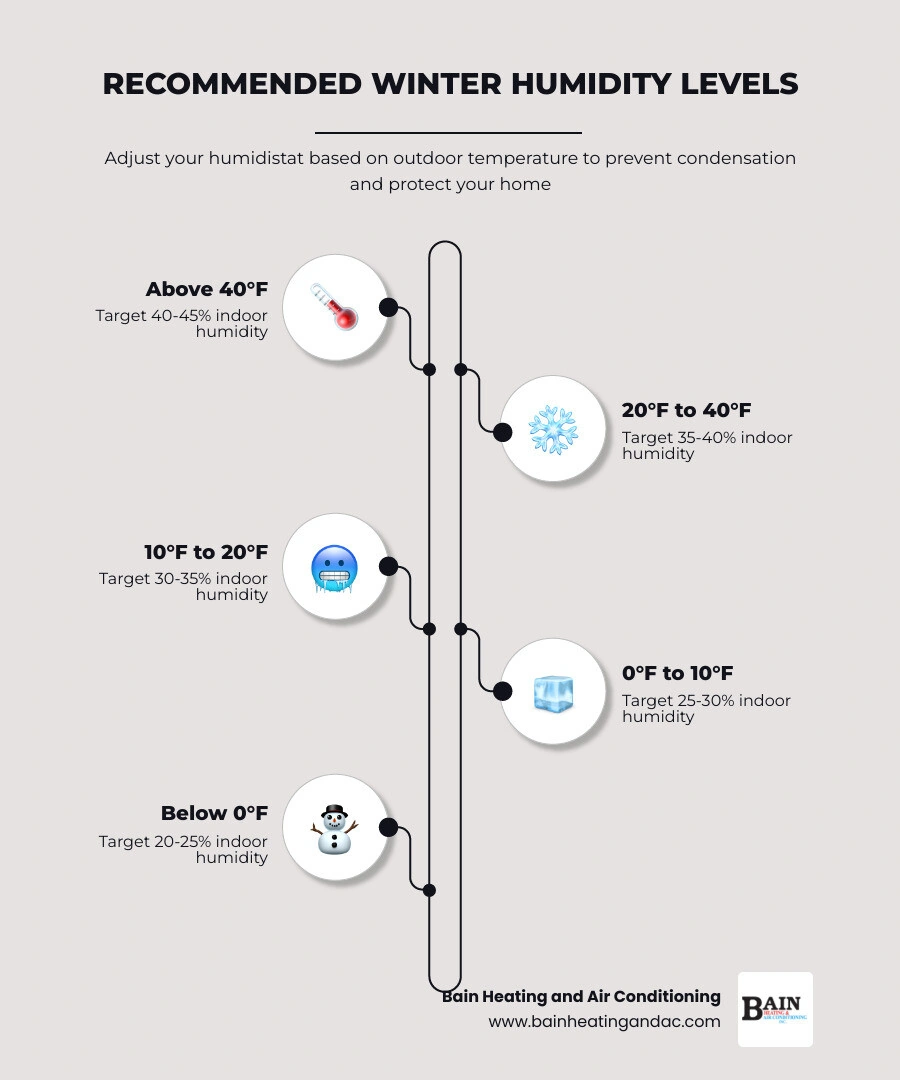

Recommended Winter Humidistat Settings

While the EPA recommends keeping your indoor relative humidity between 30% and 50%, you must adjust your humidistat settings based on the outdoor temperature during the coldest winter months. If indoor humidity is set too high when it is freezing outside, moisture will condense on cold window panes, potentially dripping down and causing wood rot or mold growth inside your walls.

Use this general guideline to protect your home:

• Outdoor Temp above 40°F: Target 40% to 45% indoor humidity.
• Outdoor Temp 20°F to 40°F: Target 35% to 40% indoor humidity.
• Outdoor Temp 10°F to 20°F: Target 30% to 35% indoor humidity.
• Outdoor Temp 0°F to 10°F: Target 25% to 30% indoor humidity.
• Outdoor Temp below 0°F: Target 15% to 20% indoor humidity.

Maintenance and Avoiding Common Risks

Like any component of your HVAC system, a whole-house humidifier requires basic routine maintenance to perform safely and efficiently.

The most important maintenance task is replacing the evaporator pad (water panel). As water evaporates off the pad, it leaves behind dissolved minerals like calcium and magnesium. Over time, these minerals build up, forming a crusty white barrier that blocks airflow and reduces the humidifier’s output. We recommend replacing this pad at least once per heating season—typically in the autumn when you schedule your pre-winter furnace tune-up.

Neglecting your humidifier can lead to water leaks, clogged drain lines, or mildew growth inside the unit. If you want to keep your entire heating and indoor air quality system in peak condition, explore our professional resources at the Furnace Maintenance Anniston AL Guide and sign up for regular system protection with our HVAC Maintenance Anniston AL plan.

Frequently Asked Questions About Furnace Humidifiers

Does a whole-house humidifier run when the AC is on?

No, your humidifier should not run during the cooling season. Air conditioners naturally act as dehumidifiers, pulling moisture out of the air to keep you cool. Running a humidifier in the summer would force your AC to work twice as hard. Most modern humidistats shut the humidifier down automatically when the system switches to cooling, and bypass systems have a manual damper that you should close in the spring.

How often do I need to replace the humidifier filter or pad?

For standard bypass and fan-powered models, the evaporator pad should be replaced once a year, usually at the start of the heating season. If you have exceptionally hard water, you may need to replace it twice a season to prevent mineral blockages. Steam humidifier canisters also need to be replaced or thoroughly cleaned periodically depending on usage and water quality.

Can a furnace humidifier cause mold in the ductwork?

If installed correctly by professional HVAC technicians and set to the proper humidity level, a whole-house humidifier will not cause mold in your ductwork. Flow-through models do not hold standing water, and steam models inject moisture as an ultra-fine vapor that is immediately carried away by the moving air, leaving no liquid water behind in the ducts to trigger mold growth.

Conclusion

A whole-house humidifier is a highly effective, low-maintenance upgrade that integrates seamlessly with your furnace to transform your indoor comfort throughout the dry winter months. By automating moisture delivery directly through your ductwork, these systems protect your health, your wooden furnishings, and your energy budget.

As a third-generation, family-owned HVAC company and certified Daikin Comfort Pro, Bain Heating and Air Conditioning has spent decades helping families across East Alabama find the perfect indoor air quality solutions. Whether you live in Oxford, Anniston, Wedowee, or Ashland, we are here to provide friendly, local expertise you can trust.

Ready to say goodbye to dry winter air and static shocks? Contact us today to explore our full range of Humidifiers and Dehumidifiers and find the perfect fit for your home.
